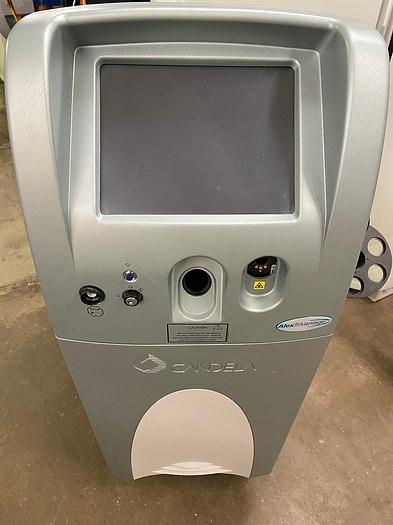

2011 Candela Alex Trivantage Alexandrite 755 , KTP-Qswitched 532 nm, ND YAG 1064
Sold
2011 Candela Alex Trivantage Alexandrite 755 , KTP-Qswitched 532 nm, ND YAG 1064
$23,995 (USD)
Location:Edina, MN
Description

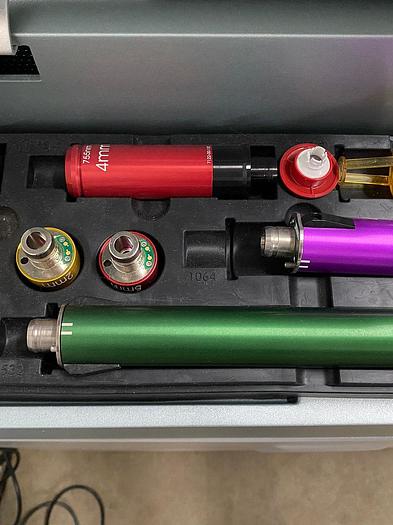

Distance Gauges, Alex and YAG Trivantage Hand Piece kits
Spot Size Attachments for:
755 nm: 2mm, 3mm & 4mm
1064 nm: 2mm & 5mm
532 nm : 3mm
Fully operational and meeting specifications. No error codes. Single owner.
The system will be installed, and have a Preventative Maintenance Service performed
at your location at the time of sale. This is included for buyers in the Lower 48 USA only.
The PM will include alignment and calibration to prevent fiber damage.
If these system are not aligned at time of delivery the system will burn the fiber.
Wavelengths: 755, 532, 1064 nm
Nominal Pulse Width: 50 ns, 100 usec. at 755 nm, 50 ns at 1064 nm & 532 nm
Pulse Repetition Rate: Single Pulse; Repetive pulsing at 1, 2, 3, & 5 Hz
Max Pulse Energy: 755 nm 800 mJ, 1064 nm 400 mJ, 532 200 mJ

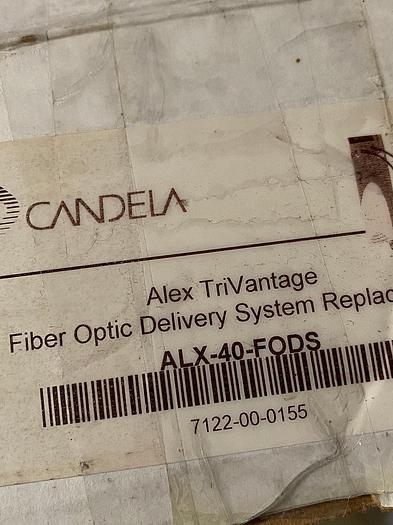

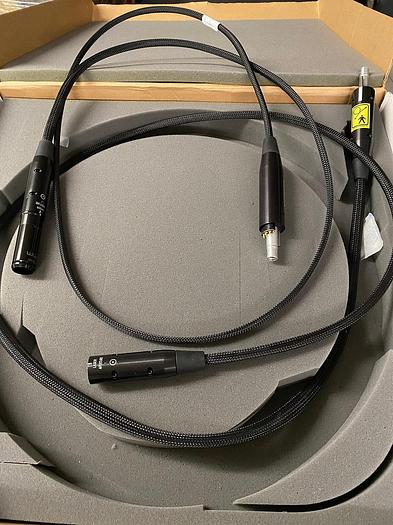

Beam Delivery: Optical Fiber
Distance Gauges: Fingernail Type at 755 nm, Ring Style at 1064 & 532 nm
Spot Sizes: 755 nm 2, 3, 4 mm; 1064 nm 2, 3, 5 mm; 532 nm 2, 3, 5 mm
Dimensions: 43" H x 16" W x 30" D
Weight: 295 lbs
The Evolution of the Q-switched Alex
TriVantage is a Revolution in Tattoo & Pigmented Lesion Treatment
The Alex TriVantage builds upon the proven performance of our 755 nm, Q-switched Alexandrite
laser with the addition of Q-‐switched 1064 nm and 532 nm laser-‐ pumped Nd:YAG wavelengths,
This remarkable new configuration also offers a Long-Pulse 755 nm wavelength, providing
treatment for a greater variety of pigmented lesions without unwanted pigment changes
Alex TriVantage dramatically expands your ability to treat pigmented lesions and multicolor tattoos
across a broad range of patient skin types.
Specifications
Manufacturer | Candela |
Model | Alex Trivantage Alexandrite 755 nm, KTP-Qswitched 532 nm, ND YAG 1064 nm |
Condition | Used |

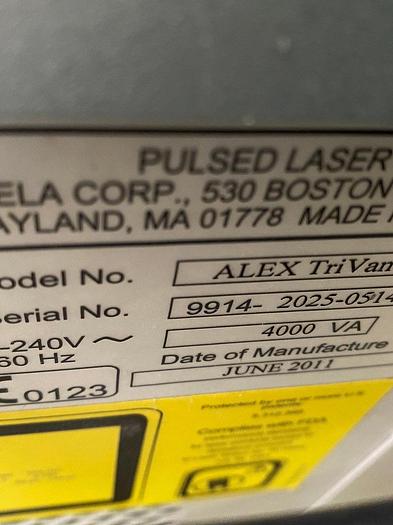

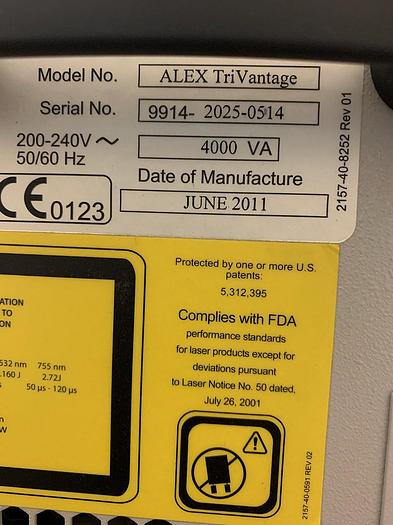

Serial Number | 9914-2025-0514 |
Dom | June, 2011 |

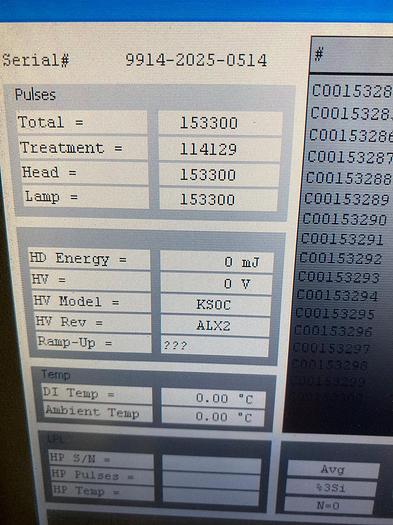

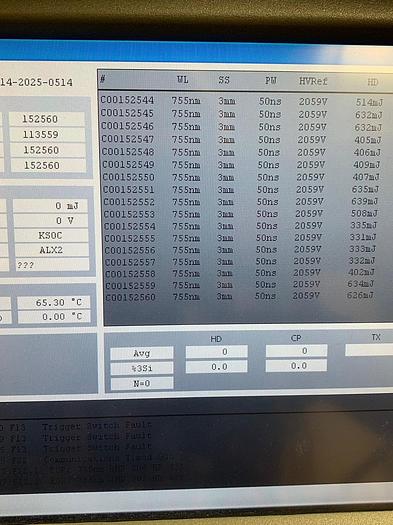

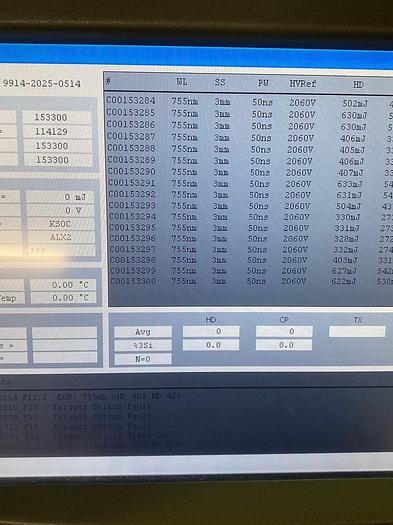

Pulse counts | 755 nm: Total: 153,300, Treatment: 114,129, Head: 153,300, Lamp: 153,300 |
Includes | 1064, 755 and 532 Hand Pieces, Delivery Fiber, Foot Switch, key, Interlock, power cord, Eyewear, Operators Manual |
Electrical requirements | 220V 30 AMP |
Product specifications | Laser Type: Alexandrite, KTP-Q Switched, Nd Yag |
Info from the mfg | Alex TriVantage® The Total Tattoo & Pigmented Lesion Solution |
